Teesside Bio Mass, Port Clarence, Middlesbrough

Supply and installation of security fencing around the full perimeter, including automated access control for the entrance and exit of the new site at Port clearance.

Rennyco secured the full site with 1050Mtrs 2.40m High Betafence Securifor ® 2D 358 Mesh.  The fencing was installed in accordance with BS 1722 Pt 14 and independently inspected by Betafence.  The main contractor / end client was issued with a 10 Year Guarantee certificate for the fencing materials and installation.

Rennyco completed ground works in preparation for the new sliding gates for access to the main site, which included the main foundation the gate is bolted down to, ducting the full width of the gate opening and from the gate to the double height intercom post for control and power cables.

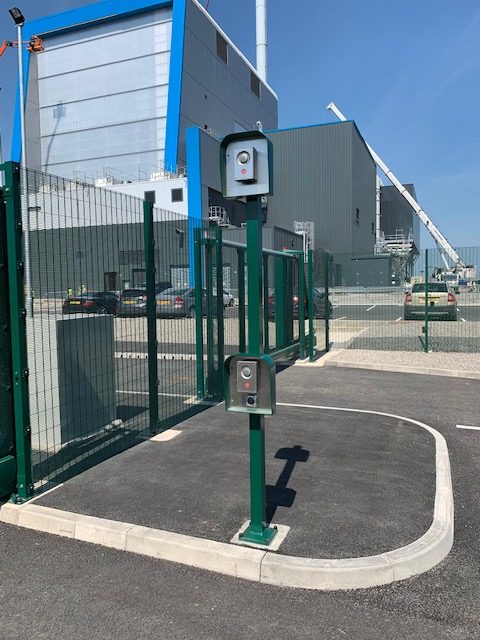

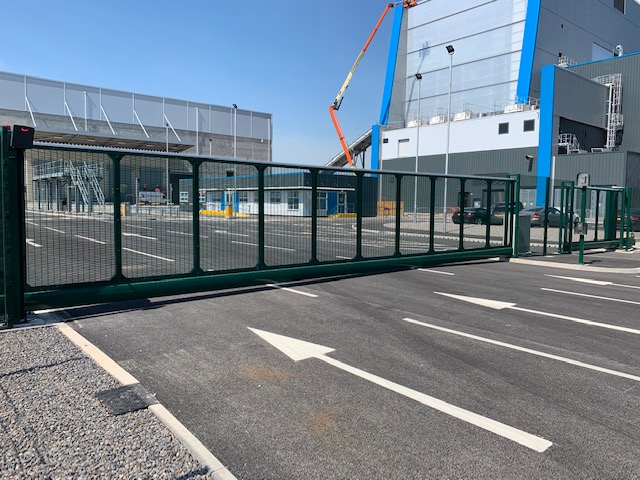

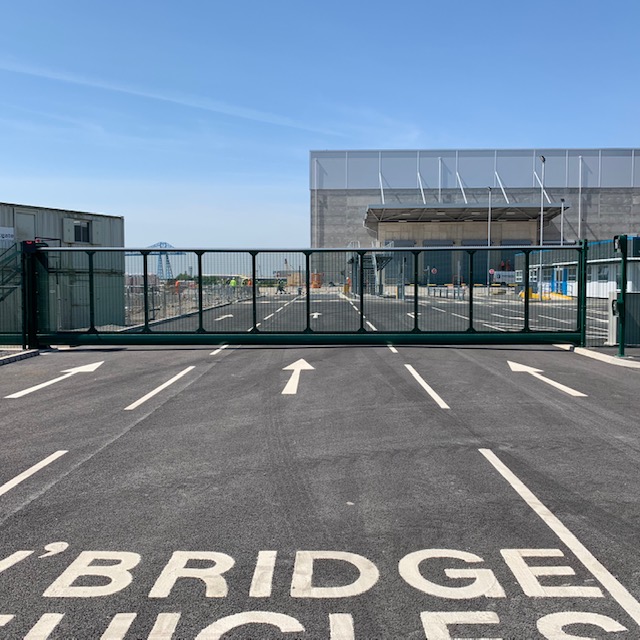

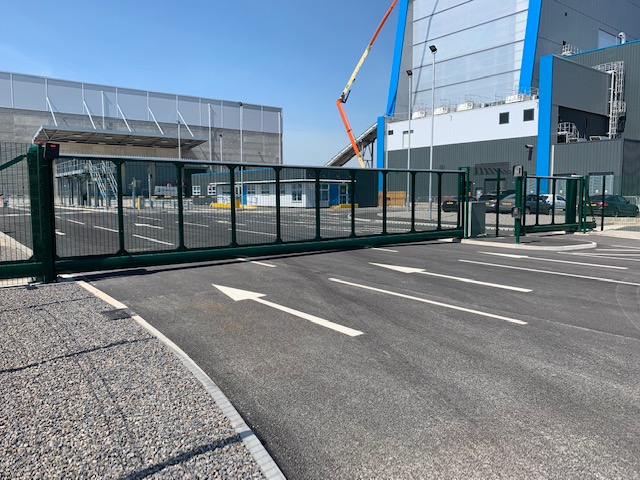

Access to site is through a 12m wide automatic cantilever sliding gate 2.40m high via a windscreen tag, complete with a long-range reader receiver mounted on the gate, pointing towards the traffic for approaching HGV to enable the gate to open.  Proximity tags for car access for staff, and 2no. video/ audio intercoms for visitor access, at HGV and car height to contact the site office. All using a PC based Paxton Net 2 System.

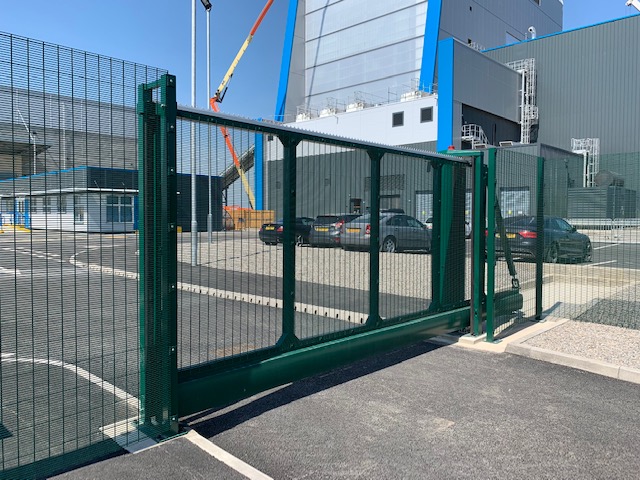

Exit is through a 4.0m wide automatic cantilever sliding gate 2.40m high via a free exit induction loop. Once a vehicle drives over this loop the gate opens and allows exit.
